Studio R 250 Voice Monitor
The Studio R 250 Voice Monitor is especially designed to meet today's need for a high acoustic pressure and sound quality on a compact and practical way. This monitor uses a high-power, coaxial 12" speaker with ferrofluid on both gaps, a 40x40 coverage with a homogenous dispersion pattern and low distortion, providing the system with an exceptional intelligibility. As it is quite practical and versatile, the coaxial system behaves as a single sound source providing the sound with an incomparable acoustic coherence.

..................

   QUALITIES:
    Own processed amplification
    Multiple positioning
    Very low distortion
    Coaxial technology
    Super compact
    High definition
    Lightweight: 22Kg.

.

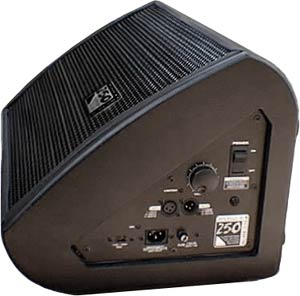

250 Voice Monitor               .

.............Click to enlarge
.............
^ Click to enlarge
APPLICATIONS:
Double-slant stage monitor
Satellite for discos and bars
Church public-address system
Ambient sound system
Spot with pedestal
Voice monitor.
.........

MAIN FEATURES:

Opto-limiter and opto-compressor systems: Offer the monitor an extraordinary dynamic performance, protecting and ensuring its operation on long lasting operations.

Amplifier with AUTO MUTE: Allows for an always silent activation.

Protections against high temperature, excess input signal, short-circuits, and network fluctuations.

Cabinet made in high-quality multi-layered plywood with pressure injected structural resin (brazilian Parana pine), with a high-strength painting, reinforced corners in plywood, and front protection grid in steel treated against corrosion.

Fitted with a lowered control panel allowing for a vertical stacking, is practical, with a transport grip, and detachable power cord.

Operation selectable on 110V and 220V voltages.

.

TECHNICAL CHARACTERISTICS:

Frequency response (+/- 3 dB)......................................................................................75 to 18,000 Hz
SPL max. (1m)..............................................................................................................Continuous 121 dB
Coverage angle...............................................................................................................40 X 40 degrees
SPL of residual noise (A Curve)......................................................................................................28 dB
Input signal level for maximum output.....................................................................................1 V RMS
Input impedance......................................................................................10K Ohm
(P2+/P3-/P1 ground)
Crossover..........................................................................................................................................2500 Hz
Power amplifier.........................................................................................................................250W RMS
Power...................................................................................................................................110 or 220V AC
Operating room temperature...................................................................................0 a 45 degrees °C
Weight.................................................................................................................................................21.8 Kg
Dimensions
(width x height x depth)....................................................................540mm X 330mm X 380mm

A 3-year warranty for electronics and assembly, and 3 years for speakers.
(valid for Brazil. Check with your dealer for local warranty)
