SKY Sound 200 Fly .AC/12-V biamplified compact system:
-MAIN QUALITIES:
-- Operation on AC or 12-V batteries
- Low cost-
- High performance
- Bi-amplification
- 3-band equalizer
- Balanced inputs for line and microphone-
- High reliability
- Compact size
- Fly PA ready
- Silent internal cooling
-
3 year warranty***
.
-MAIN APPLICATIONS:

.
SKY Sound 200 Fly

- Booster for PA
- Booster for theaters
- Monitor
- Fly PA
- Pedestal
- Side fill
- Clubs
- Bands
- Churchs
.

Dual action opto-limiter

Intelligent Opto-limiter

AB class

Auto-Mute

Silent cooling system

Its main characteristic is the capacity to operate linearly
on high power, generating high-quality audio and sound pressure,
in reduced dimensions, with a simple installation.

AN UNCOMPARABLE COST/BENEFIT RATIO!


.

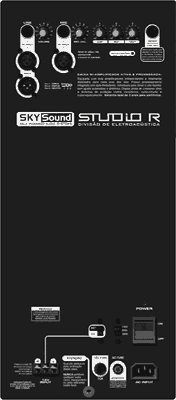

SKY Sound 200 Fly rear panel

.
SKY Sound 200 Fly is an amplified acoustic speaker for professional use, compact, with high performance, made up of a
high-power, 12" speaker and a modern 1" titanium driver, with a homogeneous dispersion pattern and a low distortion.
.

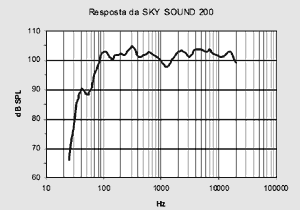

.....SKY Sound 200 Fly response curve

.

12V

< Hybrid operation on regular power line and 12-V batteries:
Capable of working for above 5 hours under full power, when fed on battery, with a UPS function and automatic recharger.

.

.
.

Fly system detail.

.
.
.

<
Fly PA system:
Practical and integrated, allows for a quick and safe suspension of your SKY Sound on Fly applications.

^ Rear panel: Volume and equalization controls for bass, mid, and treble sounds and XLR or P10 inputs for line and microphone complement its use practicality and versatility characteristics. The highlight is the output for mixed line+microphone signal and for battery connections. Click the desired image area to enlarge it.
.

-TECHNICAL CHARACTERISTICS:

The CREST-FACTOR processor offers the system an extraordinary and dynamic performance, protecting and ensuring its operations on long lasting applications. Its amplifier is fitted with an AUTO-MUTE, which allows for an always silent activation, even in case of transients and power outage. It is protected against high temperature, short-circuit, network fluctuations, transients, input overload, DC, reactive or mismatched loads, ultrasound and radiofrequency, with Soft-Clip, and Soft-Start activation.
.

 Frequency response (+/- 3dB) 60 - 18.000Hz
SPL max. (1m) 121 dB
Coverage angle 60x40 degrees
SPL of residual noise (A Curve) 28dB
Input signal level for maximum output 0,5V RMS adjustable on the rear panel
Input impedance (balanced) XLR 10K Ohm (P2 = +, P3 = -, P1=commom)
Crossover 2500Hz, 12 dB/8a active
3-Band equalizer +/- 10dB at 100Hz, 1KHz and 10KHz
Power amplifiers:
- Loudspeaker
- Driver

90 W RMS
30 W RMS
Power 120V AC, 220V AC or 12V DC (or any custom voltages)
Operating room temperature 0 a +45 degrees
Dimensions (width X height X depth) 400mm X 610mm X 400mm (trapezoidal)
Weight 24kg

Cabinets with side grips to make transportation easier, made in high-quality multi-layered plywood with pressure injected structural resin (brazilian Parana pine), high-strength painting, reinforced corners in ABS, and front protection steel grid treated against corrosion..

Click here to download the PDF manual.

A 3-year warranty for electronic circuits and assembly.***

STUDIO R SKY Sound speakers, despite being for high power, can work in low noise environments such as studios or small spectable rooms, as they use a very low amplification system and are
silently cooled by the PIPE COOLING system.

.(***) Valid for products sold in Brazil. Check with your dealer for local warranty).
