Biamplified system: |
-MAIN QUALITIES: - High power output - Processed bi-amplification - Active equalization of bass, mid, and treble sounds - Balanced inputs for line and microphone - High reliability - Fly PA ready - Silent internal cooling - 3-year warranty*** .
|
Its main characteristic is the capacity to operate linearly |
AN UNCOMPARABLE COST/BENEFIT RATIO! |
|||||
.![]() |
.
|
||||

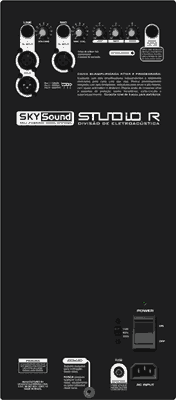

^ Rear panel: Volume and equalization controls for bass, mid, and treble sounds and XLR or P10 inputs for line and microphone complement its use practicality and versatility characteristics. The highlight is the output for mixed line+microphone signal. Click the desired image area to enlarge it. |
-TECHNICAL CHARACTERISTICS: |
The CREST-FACTOR processor offers the system an extraordinary and dynamic performance, protecting and ensuring its operations on long lasting applications. Its amplifier is fitted with an AUTO-MUTE, which allows for an always silent activation, even in case of transients and power outage. It is protected against high temperature, short-circuit, network fluctuations, transients, input overload, DC, reactive or mismatched loads, ultrasound and radiofrequency, with Soft-Clip, and Soft-Start activation. |

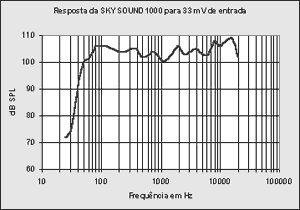

Frequency response (+/- 3dB) | 35 - 18.000Hz |
SPL max. (1m) | 128 dB |
Coverage angle | 60x40 degrees |
SPL of residual noise (A Curve) | 31dB |
Input signal level for maximum output | 0,5V RMS adjustable on the rear panel |
Input impedance (balanced) XLR | 10K Ohm (P2 = +, P3 = -, P1=commom) |
Crossover | 1500Hz, 24 dB/8a active |
3-Band equalizer | +/- 10dB at 100Hz, 1KHz and 10KHz |
Power amplifiers: - Loudspeakers - Driver |
540 W RMS 4 Ohm 70 W RMS |
Power | 120V AC and 220V AC (or any custom voltages) |
Operating room temperature | 0 a +45 degrees |
Dimensions (width X height X depth) | 470mm X 13500mm X 470mm (trapezoidal) |
Weight | 53kg |
Cabinets with side grips to make transportation easier, made in high-quality multi-layered plywood with pressure injected structural resin, high-strength painting, reinforced corners in ABS, and front protection steel grid treated against corrosion.. |
|
A 3-year warranty for electronic circuits and assembly.*** .(***) Valid for products sold in Brazil. Check with your dealer for local warranty). |
